Modern Device Wind Sensor Rev C with Particle Argon

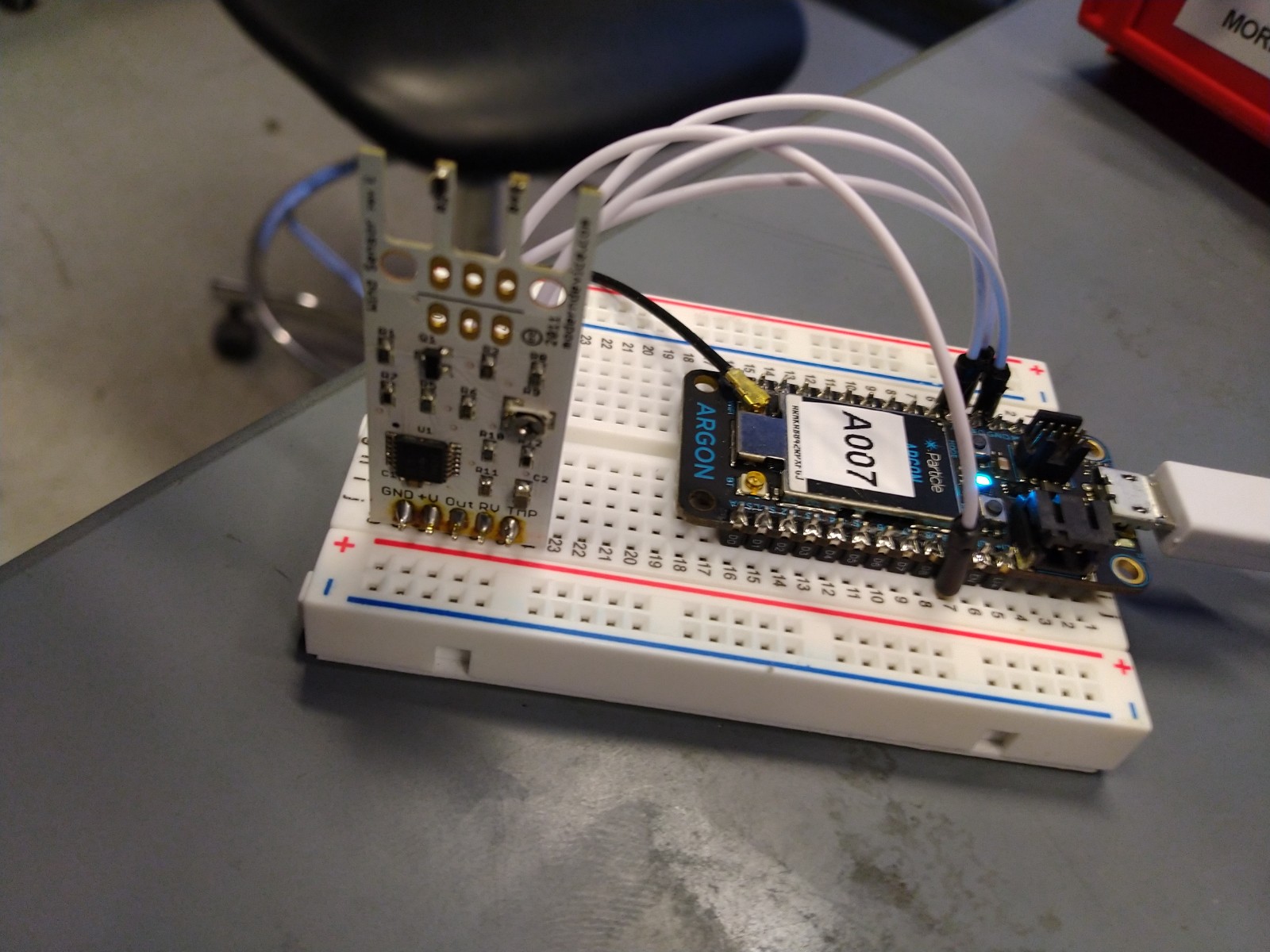

This the sensor we are going to build in this exercise.

We will need the following hardwares:

• A Particle Photon, it will work with Argon too (Can be bought here)

• USB Data Cable

• Wind Sensor Rev.C (Can be bought here)

• Jumper Wires x 4 (Can be bought here)

• Breadboard (Can be bought here)

• Soldering Kit (Can be bought here)

• Laptop or Computer

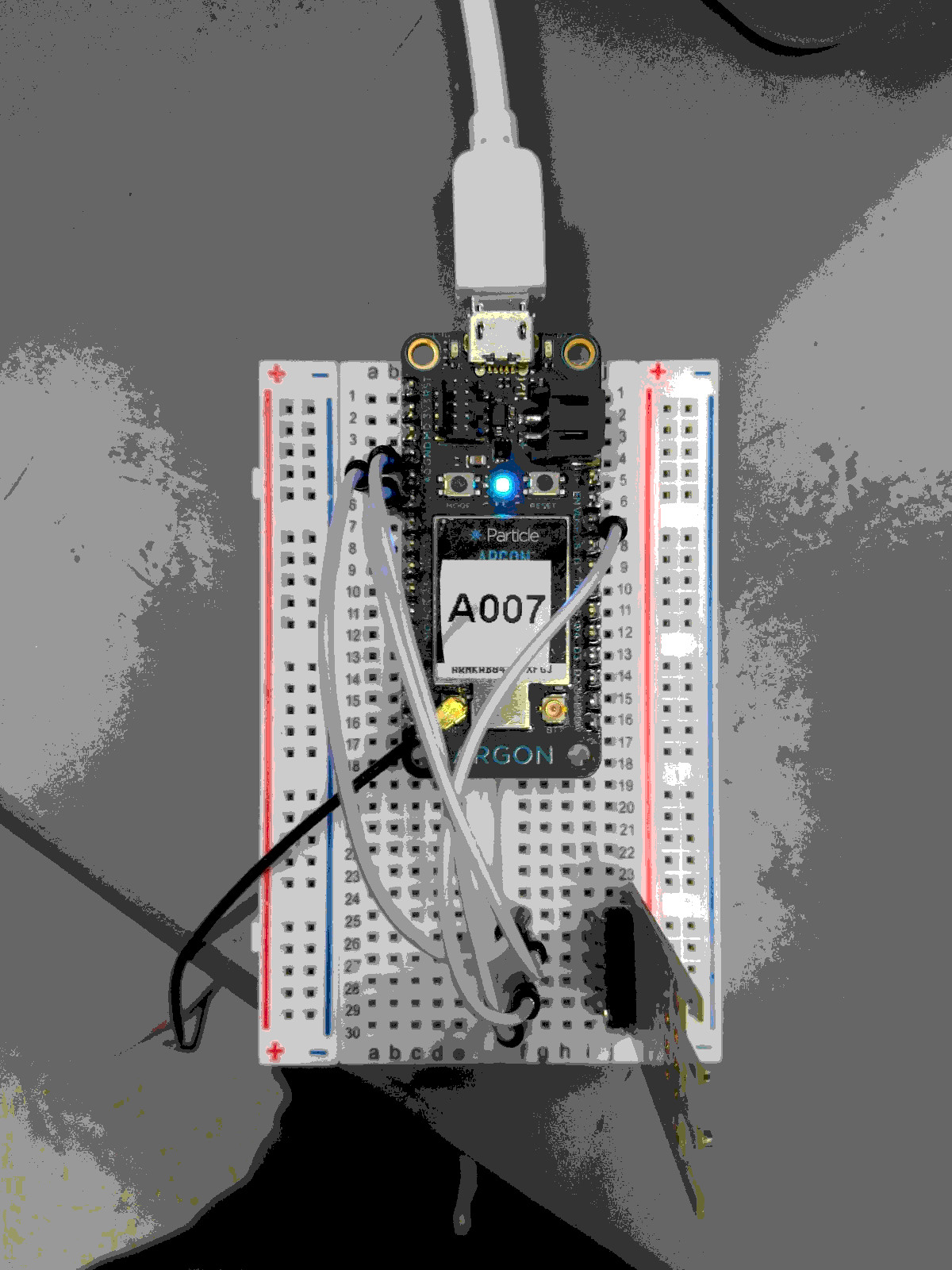

1. Connect the Argon and Wind Sensor onto the breadboard as shown in the figures.


   • Connect the GY906 sensor as follows

     Wind Sensor <---> Photon/ Argon
     GND <----------------> GND
     +V  <----------------> USB
     RV  <----------------> A0
     TMP <----------------> A1

2. Refer to to register the Photon Device with our Particle account.

3. Flash the script ‘STAPI_1_WIND_REVC’ to the Argon. Fill in the mandatory parameters accordingly. You can choose to leave the optional parameters to their default values.

   =============================================================================================
   !!! MANDATORY PARAMETERS
   =============================================================================================
   String thingDesc = "windrevc"; //DESCRIBE THE DEPLOYMENT
   int sample_rate = 10 * 1000; // how often you want device to publish where the number in front of a thousand is the seconds you want
   =============================================================================================
   OPTIONAL PARAMETERS
   (this parameters only works when it is the first time registration of the device)
   (if the device is already registered, these options are ignored)
   =============================================================================================
   //Description of the location
   String foiName = "na"; //THE LOCATION NAME
   String foiDesc = "na";
   String locType = "Point";
   String enType = "application/vnd.geo+json";
   //Define the location of the thing. If location is not impt, use [0,0,0] the null island position.
   float coordx = 0.0; //lon/x
   float coordy = 0.0; //lat/y
   float coordz = 0.0; //elv/z

4. Refer to to visualize the data on Grafana.
