Thermal Comfort Model Part 2: Visualizing Thermal Comfort and Energy Reduction

4.2. Thermal Comfort Model Part 2: Visualizing Thermal Comfort and Energy Reduction#

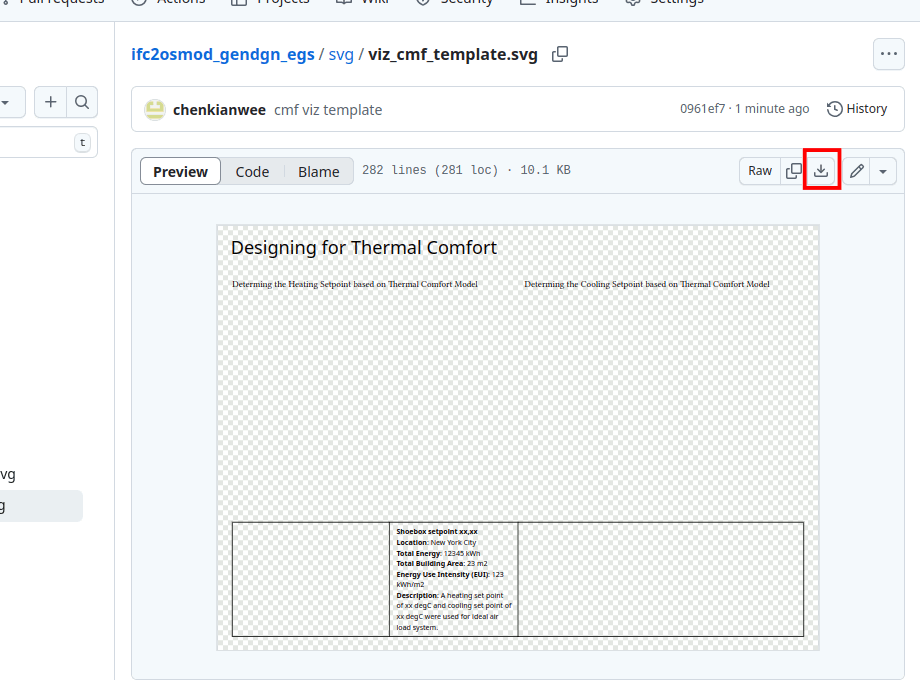

  1. Download the visualization .svg template from here.

../_images/cmf2_1.png

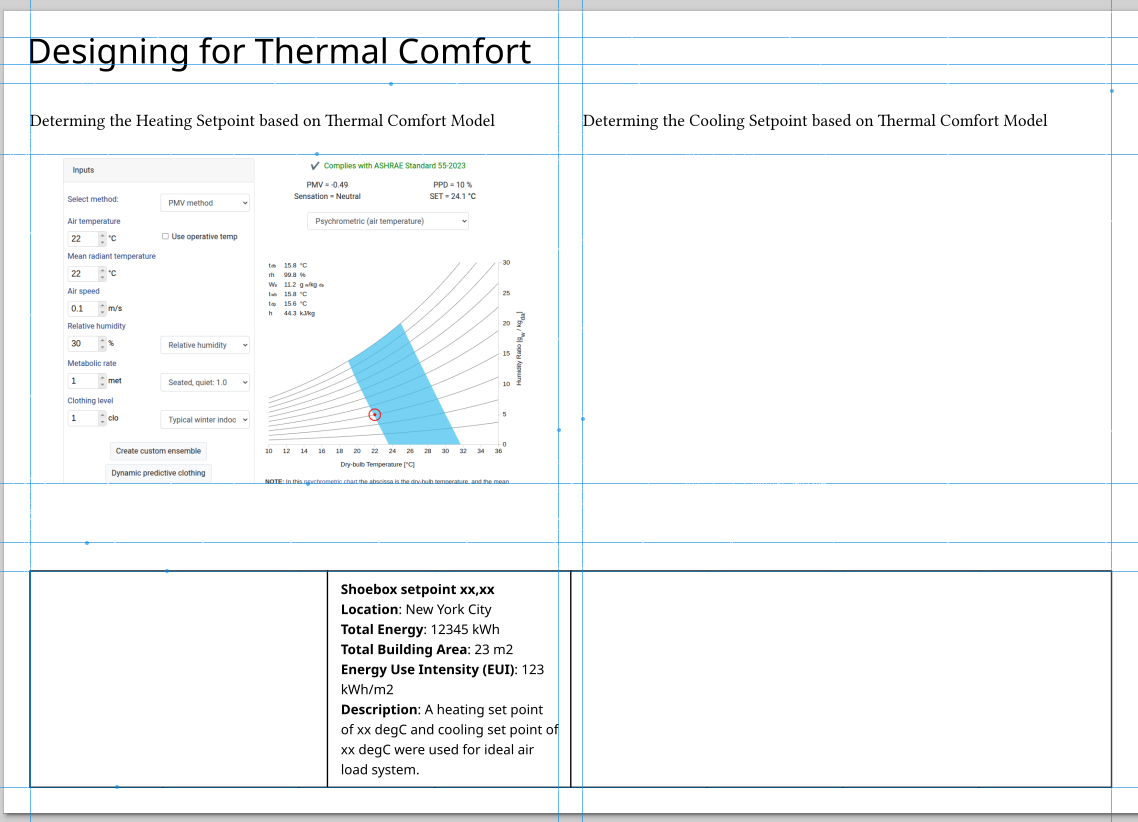

  1. Print screen the CBE thermal comfort tool results and paste it into the template.

../_images/cmf2_2.png



  1. Follow the instructions from this section on exporting image from FreeCAD and this section on grabbing graph results from OpenStudio in the shoebox tutorial.

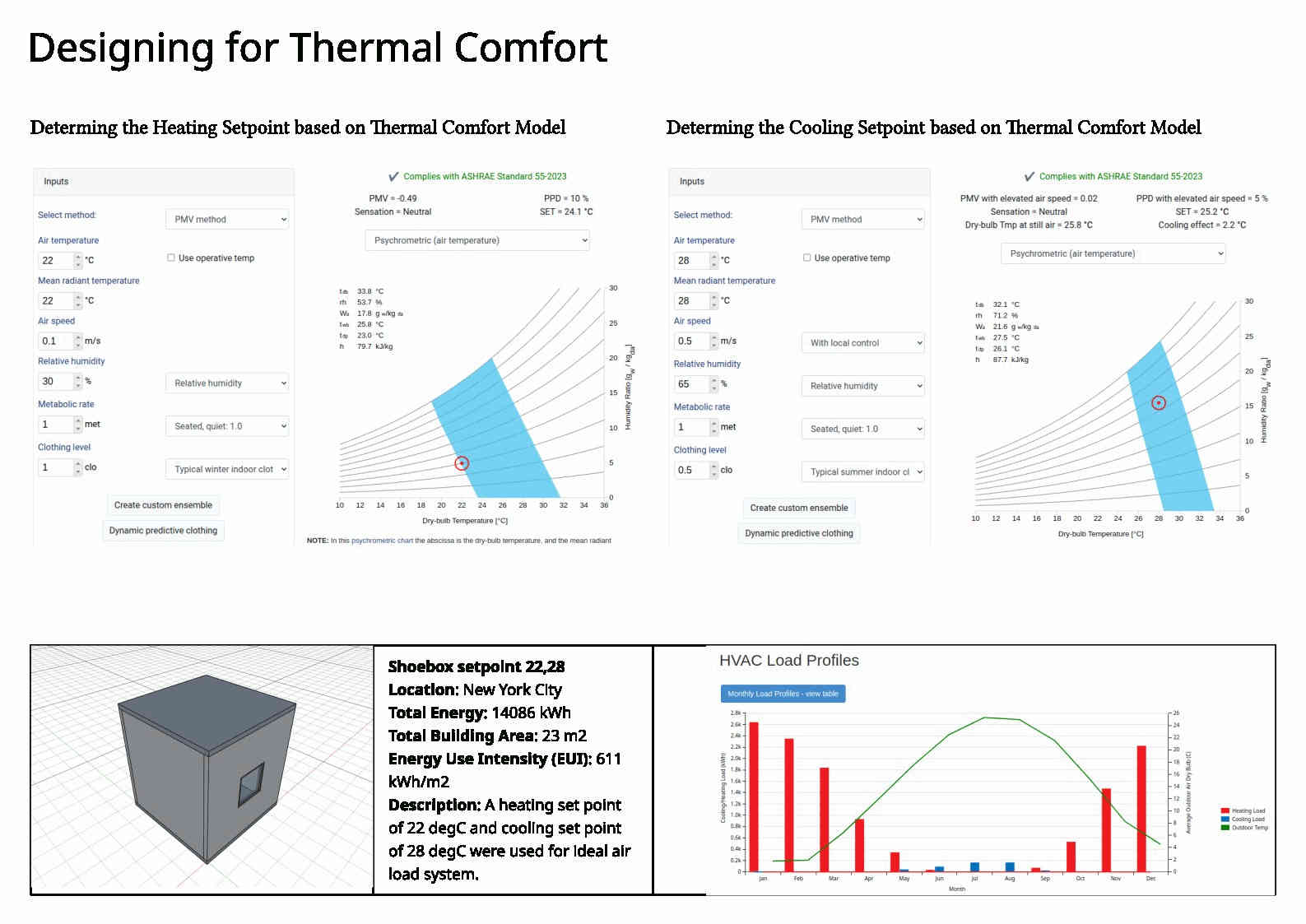

  2. Your panel should look like this.

../_images/cmf2_3.jpg



  1. Do 2 panels. One for the original setpoints and one for the adjusted setpoints.
