7.2.1. Visualize the results#

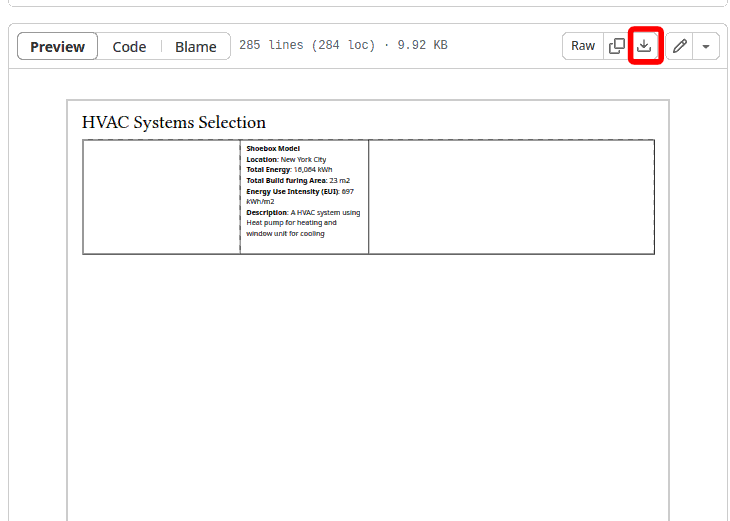

  1. Download the visualization .svg template from here.

../_images/spec2_2.png



  1. Follow the instructions from this section on opening .svg template.

  2. Follow the instructions from this section on exporting image from FreeCAD and this section on grabbing graph results from OpenStudio in the shoebox tutorial.

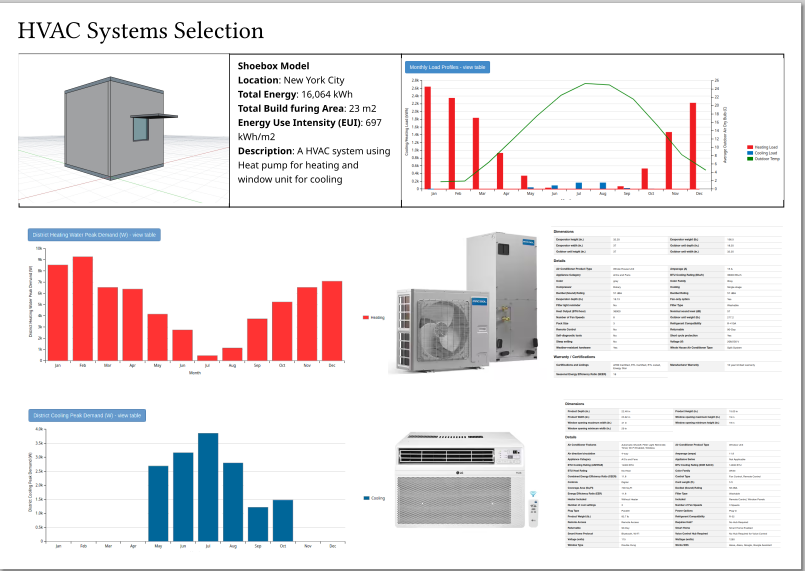

  3. Your final panels should look something like this showcasing the HVAC selection.

../_images/spec2_1.png
